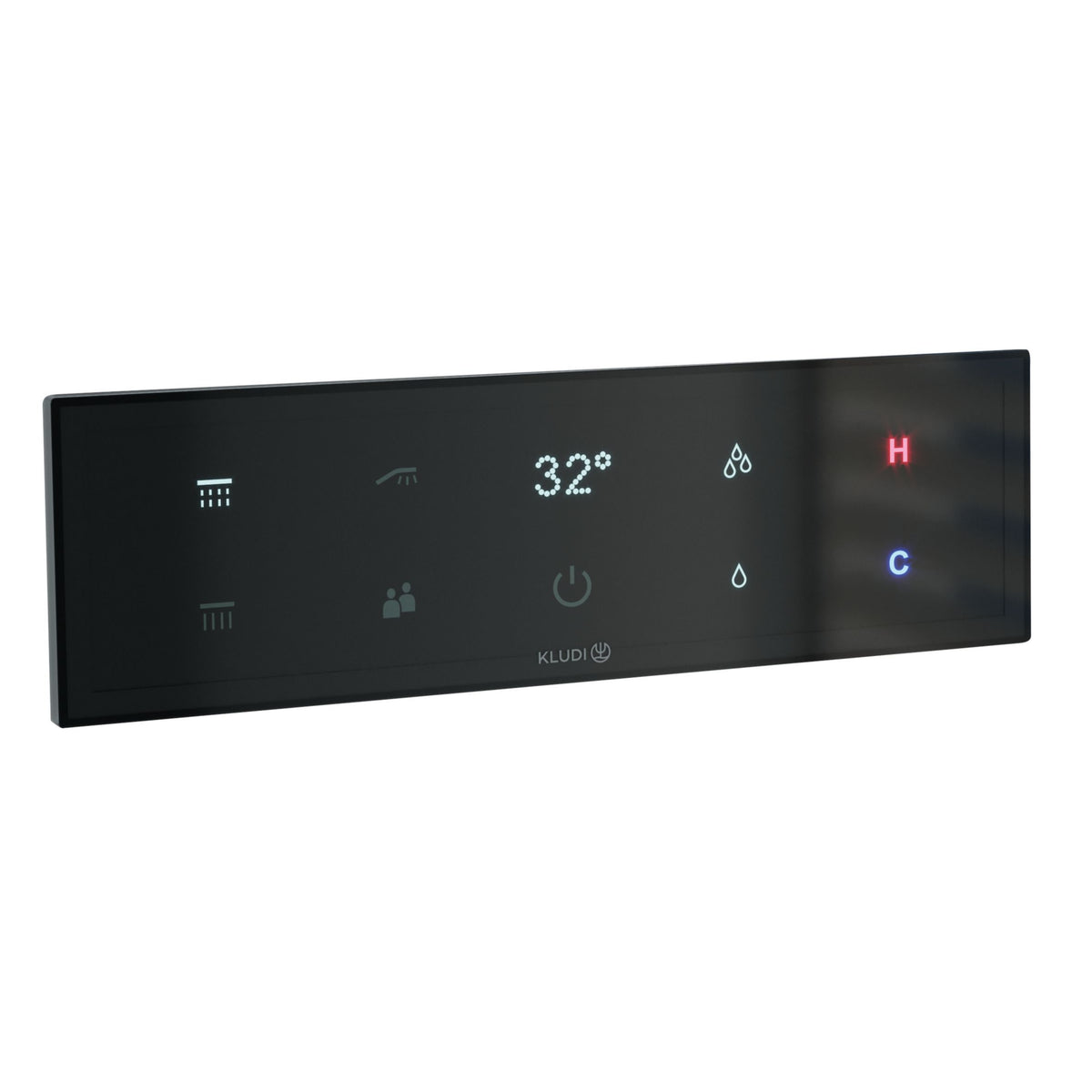

KLUDI-TOUCHTRONIC Electronic concealed thermostatic fitting
Choose options
KLUDI-TRONIC – The electronic thermostatic shower valve with touch control for a more comfortable shower
The KLUDI-TRONIC electronic thermostatic shower valve combines striking design with smart engineering to deliver a calm, precisely controlled shower experience. Its concealed installation keeps the shower wall clean and unobtrusive, while the matte black finish provides a bold, contemporary accent.
Precision temperature control, modern styling
The concealed electronic thermostat maintains a steady water temperature and brings the set temperature up quickly. An adjustable hot-water limit prevents scalding, and the integral backflow protection safeguards your potable water. With the optional WiFi module, the valve can be controlled via app and store up to three user profiles for personalized settings.
Features
Explore the KLUDI-TouchTronic concealed electronic bodies in the KLUDI-TRONIC series and enjoy intuitive touch and app control, secure temperature management, and tailored settings—choose the matte black finish to make a strong modern statement in your bathroom.
- KLUDI-PUSHTRONIC concealed shower system with electronic thermostat and touch display for discreet wall mounting
- Touch display for temperature and flow control, wall-mounted with service access box and IP65-rated control panel
- WiFi module and app control with storage for up to 3 user profiles for individual preferences
- Thermostat provides constant temperature regulation, includes temperature limiter set at 44 °C and a safety stop at 38 °C
- Supports thermal disinfection up to max. 70 °C; programmable start temperature and start flow
- Concealed body rough-in kit with electronic mixing unit, G1/2 connections for cold and hot water, powered via 230 V power supply/12 V connection cable
- Flow per outlet: 6–18 l/min; combined outlets: 12–20 l/min (at 3 bar)
- Intrinsic anti-backflow screen seals, additional sealing collar and waterproofing compliant with DIN 18534
